3D Printed Lamp
How it started

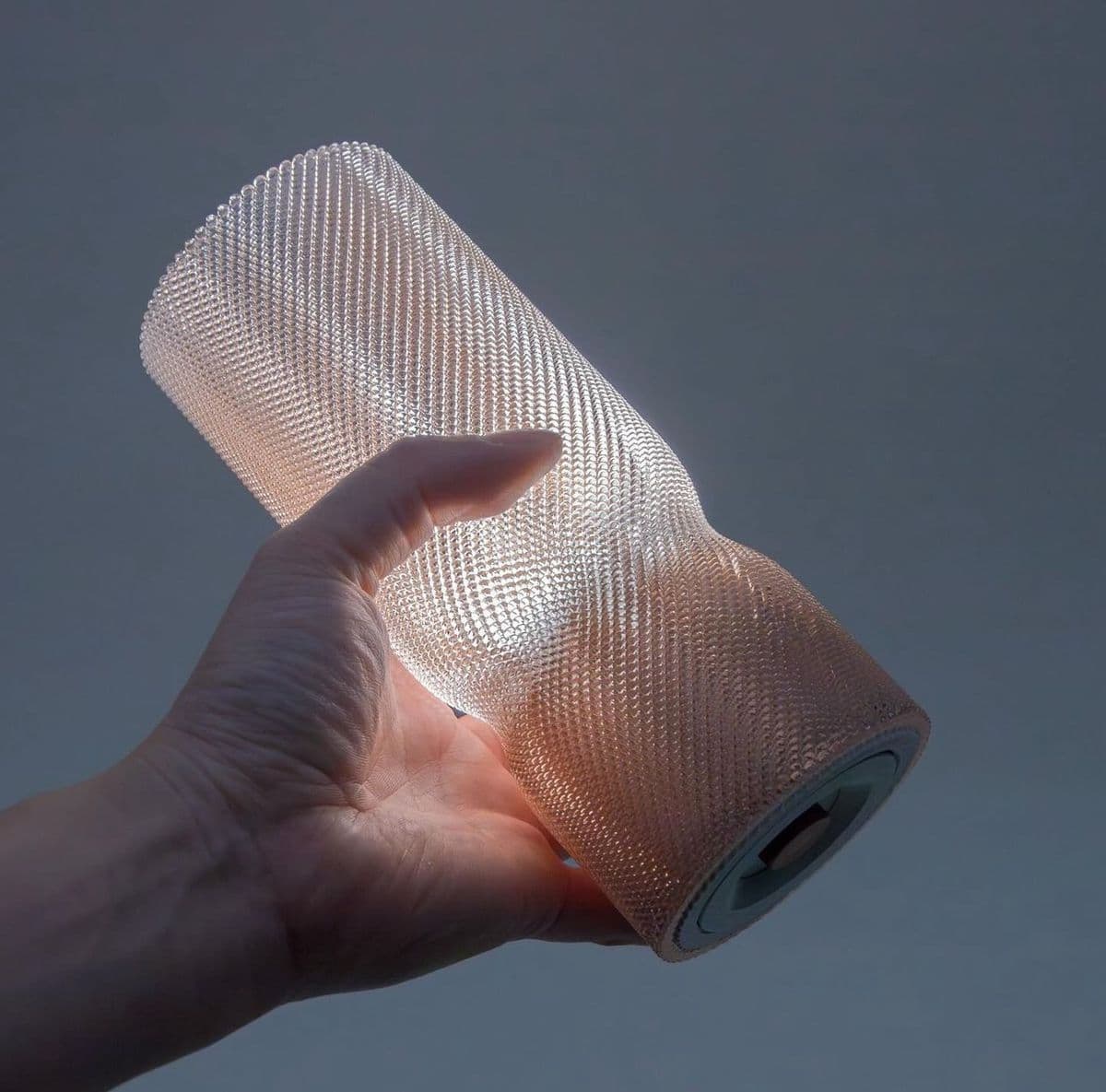

To give credit, my lamp was inspired by this lamp on Pinterest. I really liked it, so I decided to make something similar. This project was done in July 2025.

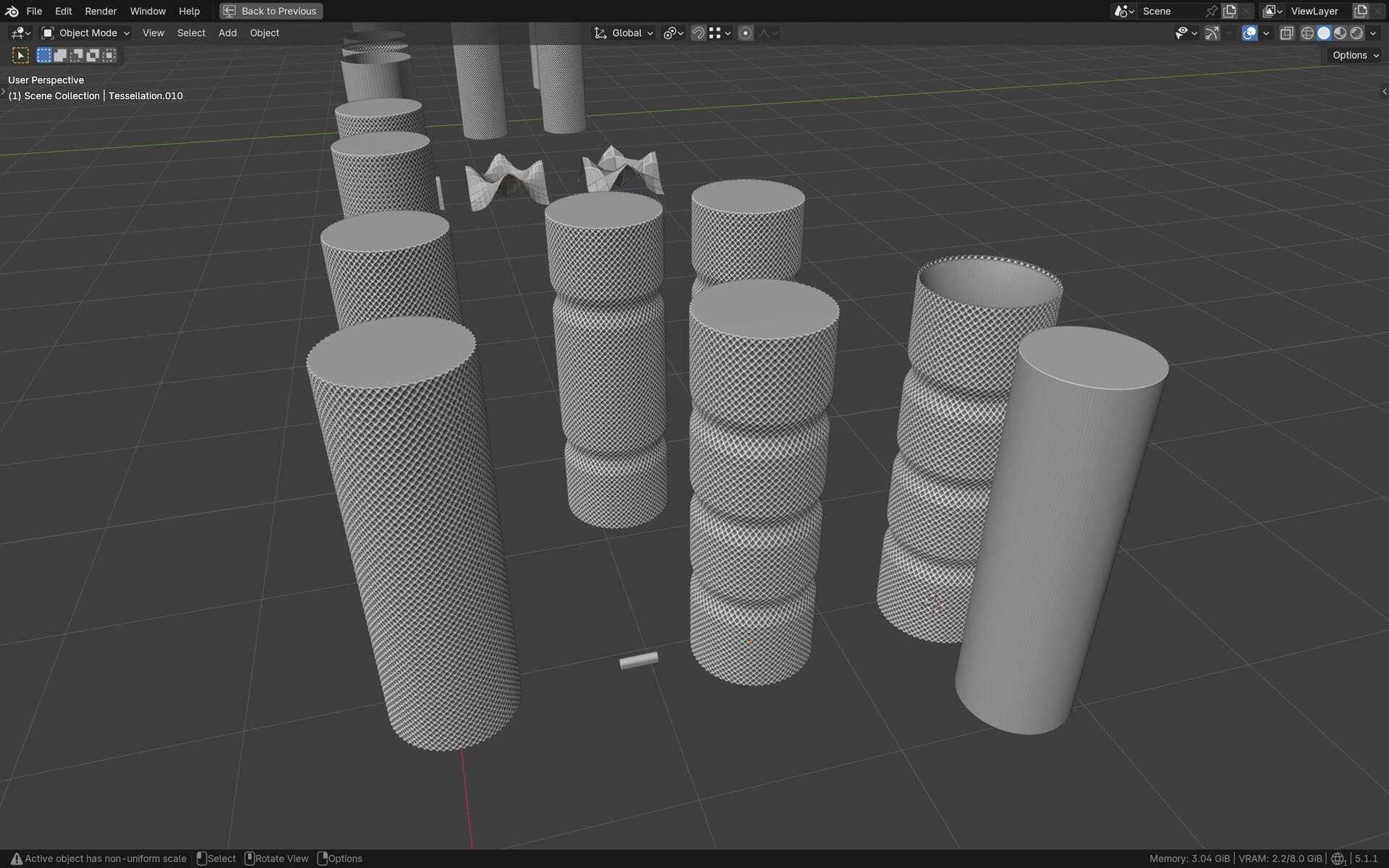

Design
I exclusively used Blender to model the lamp.

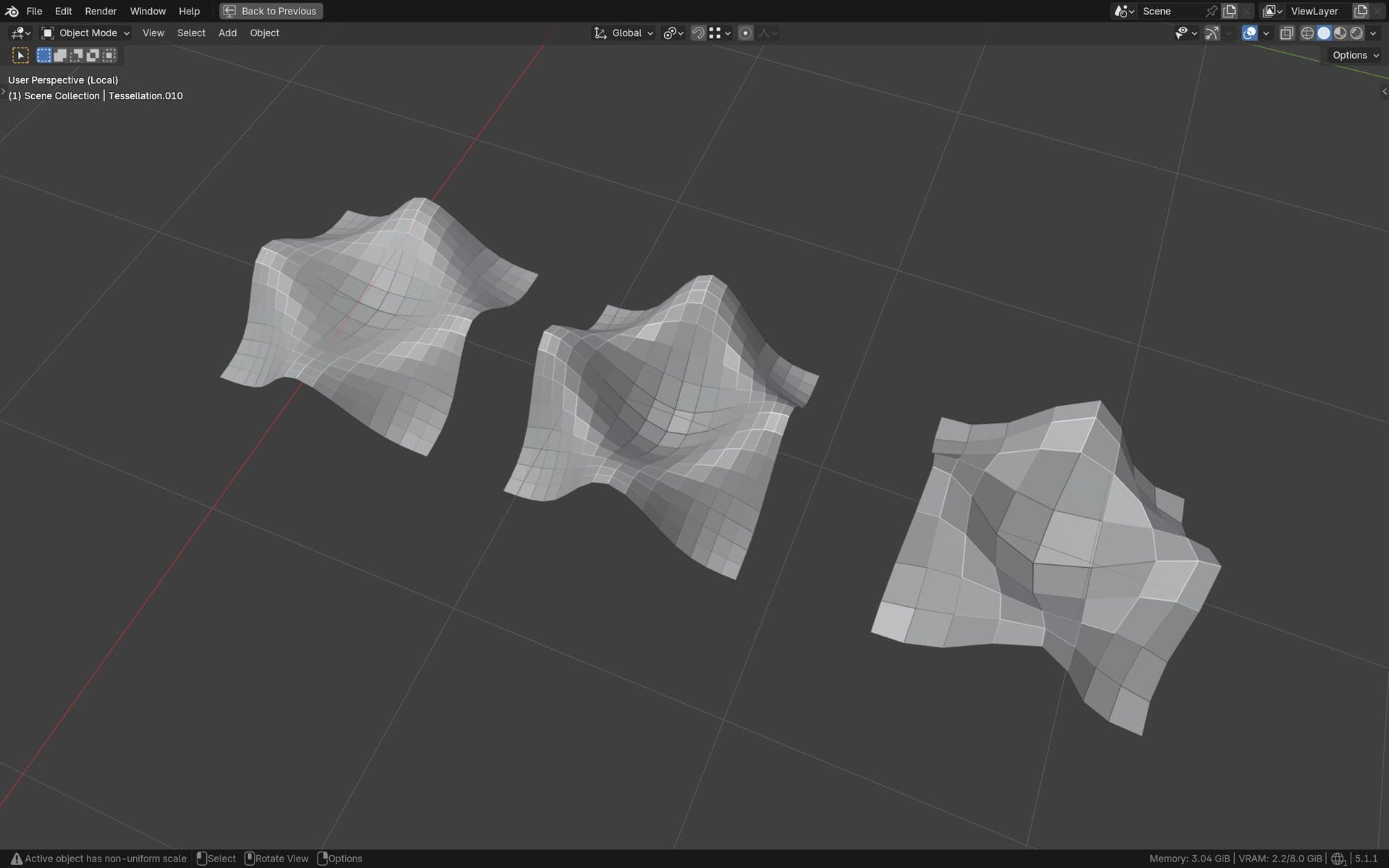

How the texture was made: I distributed a tesellating part over a cylindrical surface with Tissue, which is a computational design extension.
After that it was a bit of proportional scaling to create the ringed indents, and a couple of boolean operations to create the space for the LED module and cable.
3D printing
The lamp consists of two parts: the outer textured shell (printed with transparent PETG) and a diffuser inset (printed with white PLA). Both parts are printed with vase mode.
I printed the parts on my Sovol SV08. Unfortunately I could not find any pictures of the printing process.

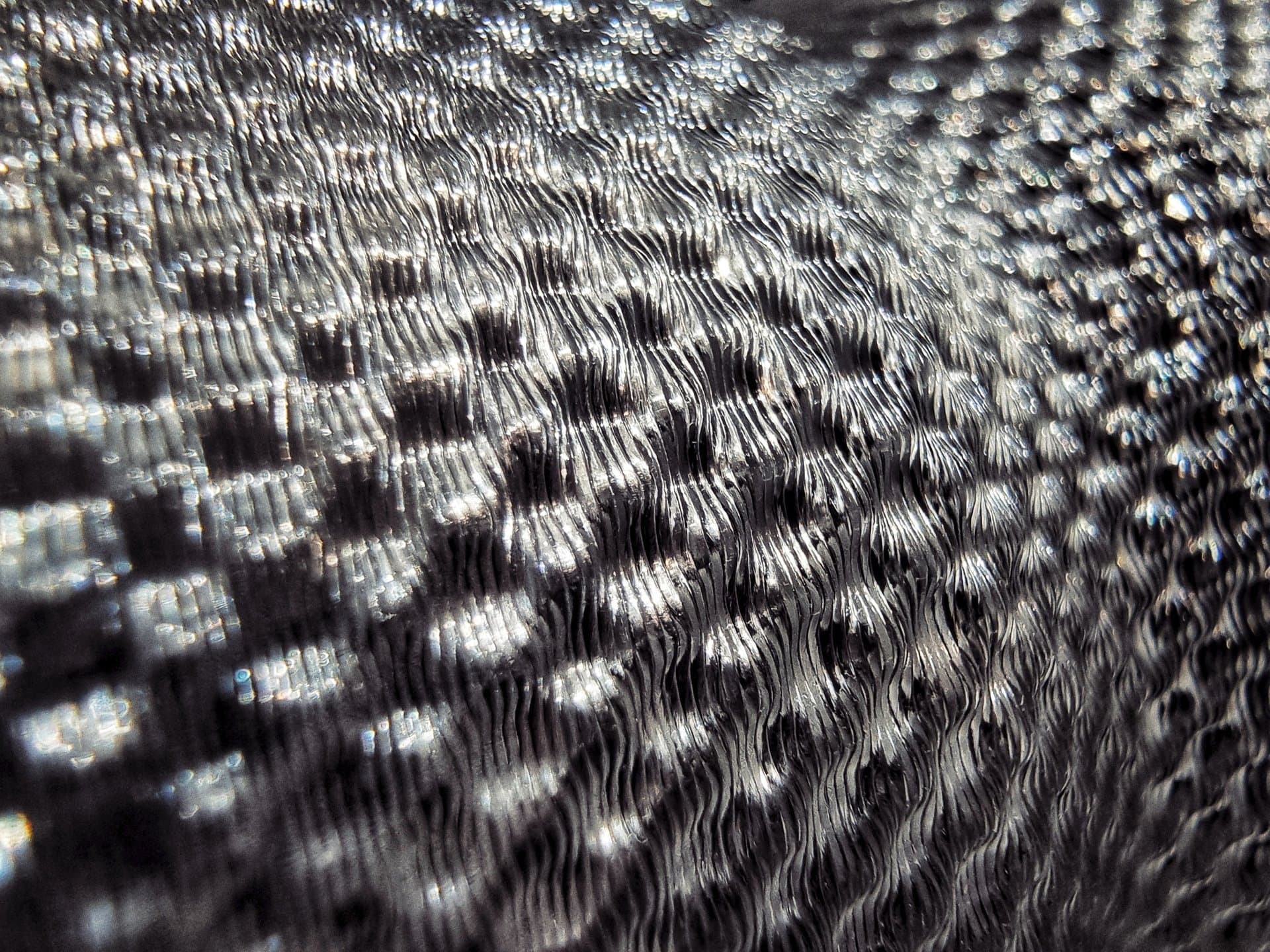

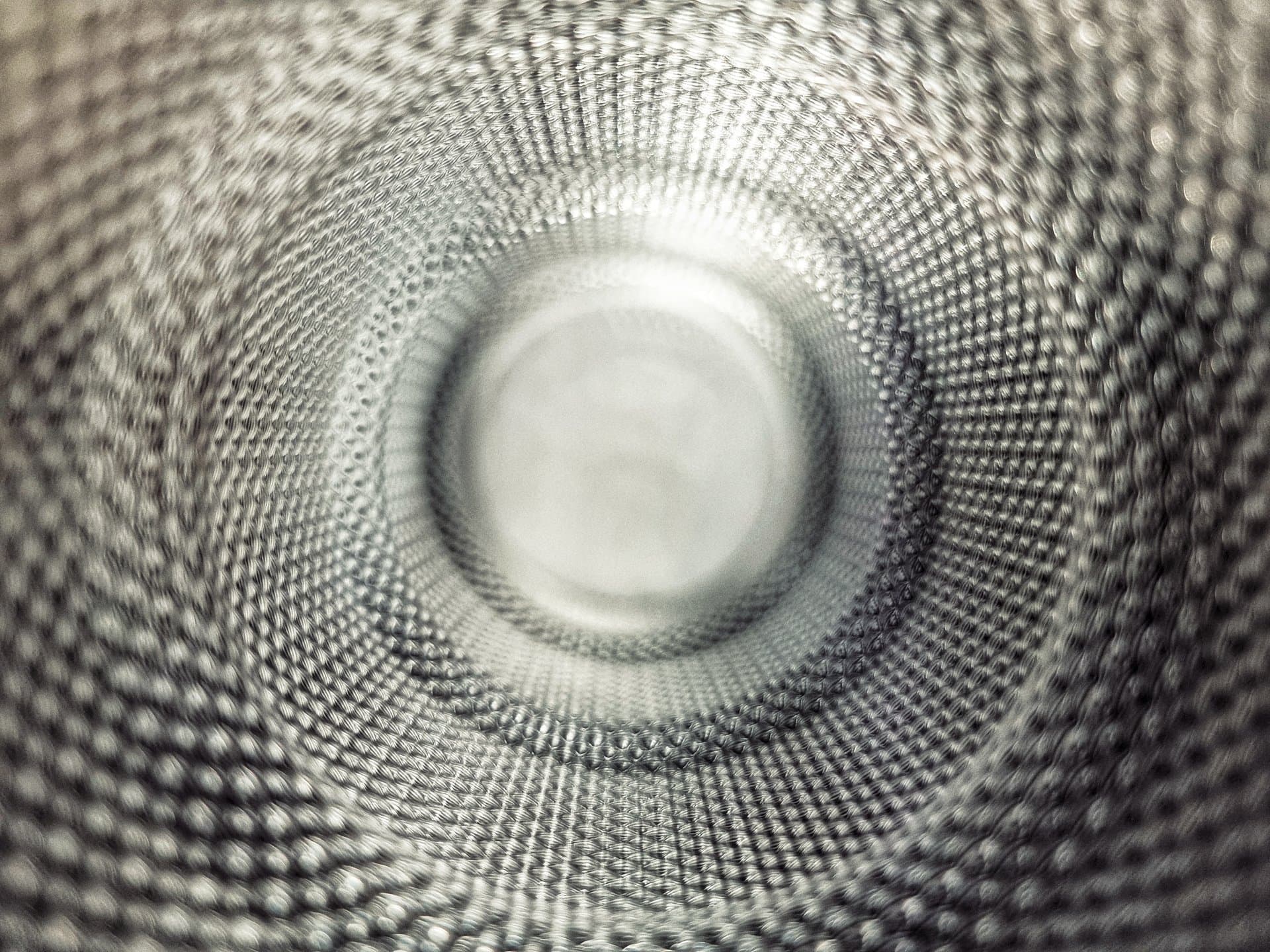

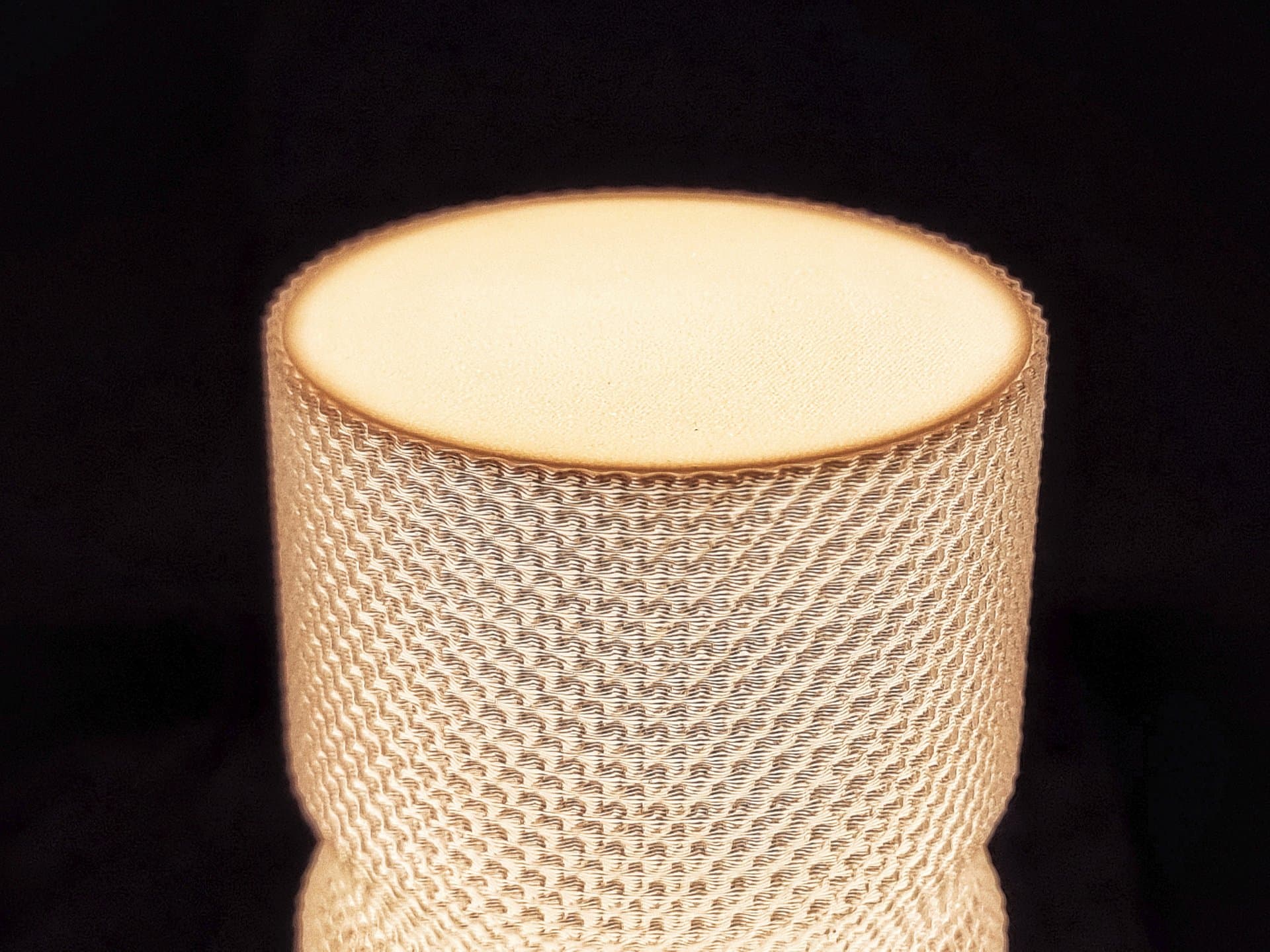

The texture turned out really well:

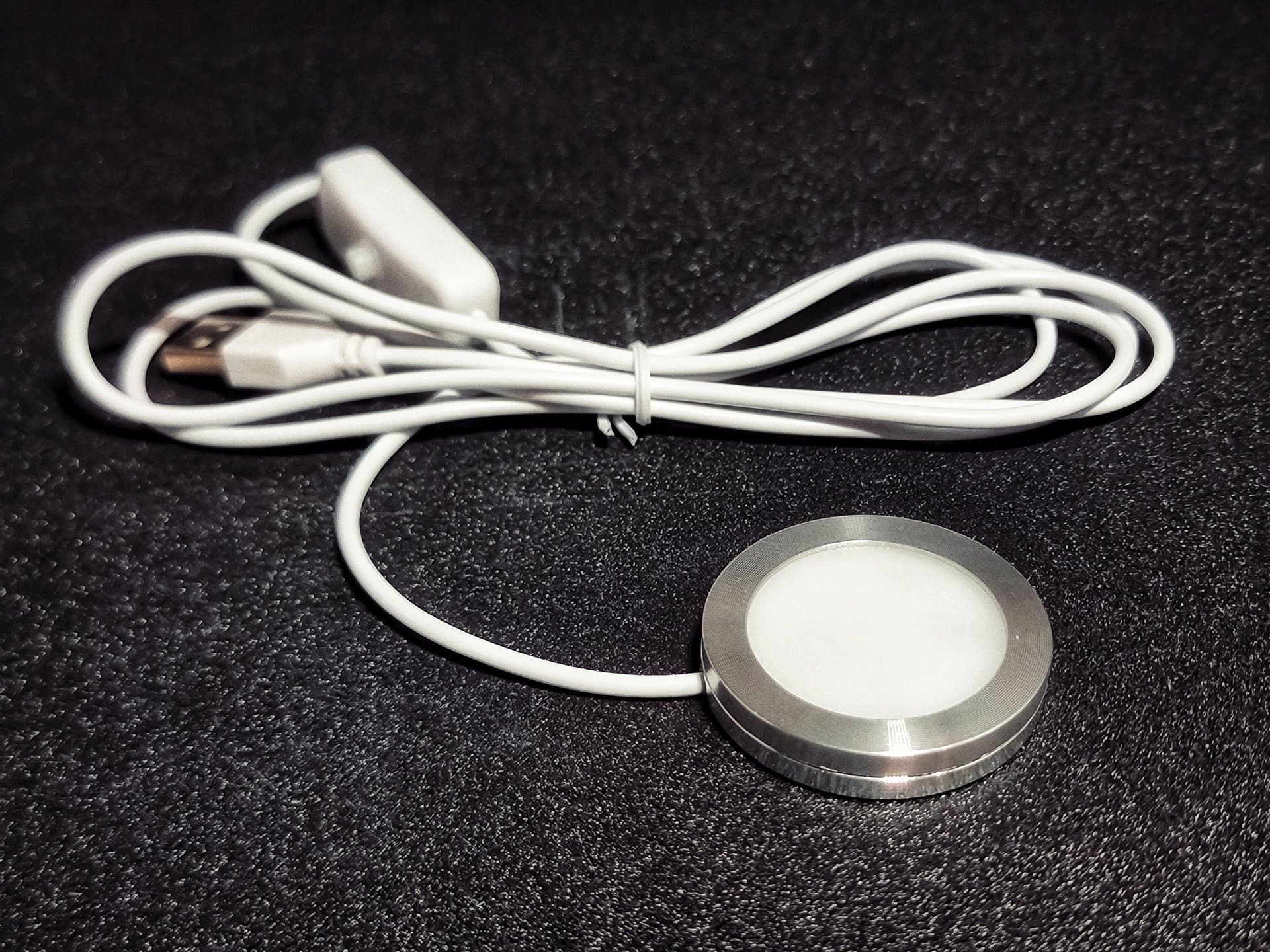

LED module

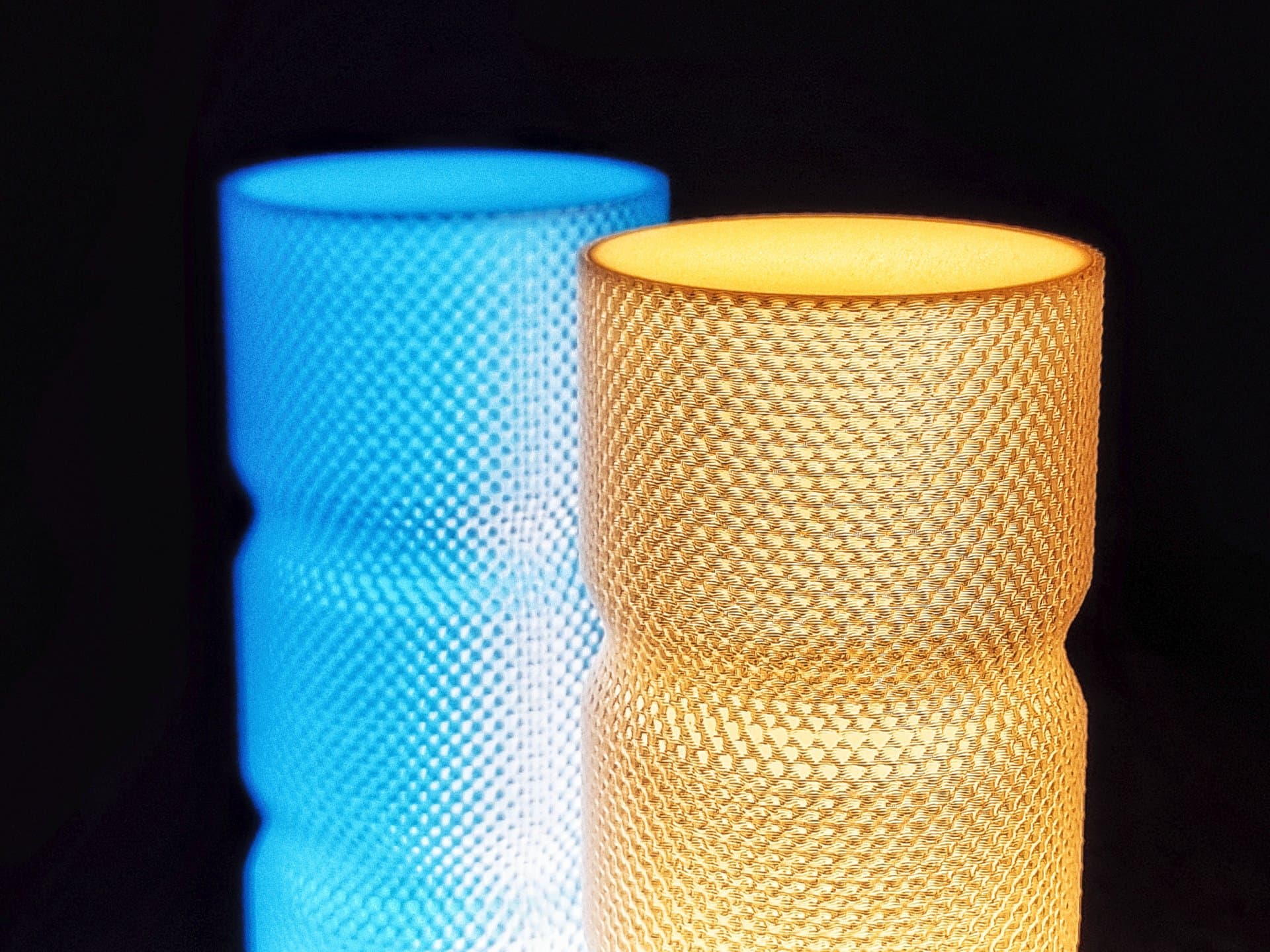

I made two lamp variants:
- Warm white with a physical switch
- RGB with a remote

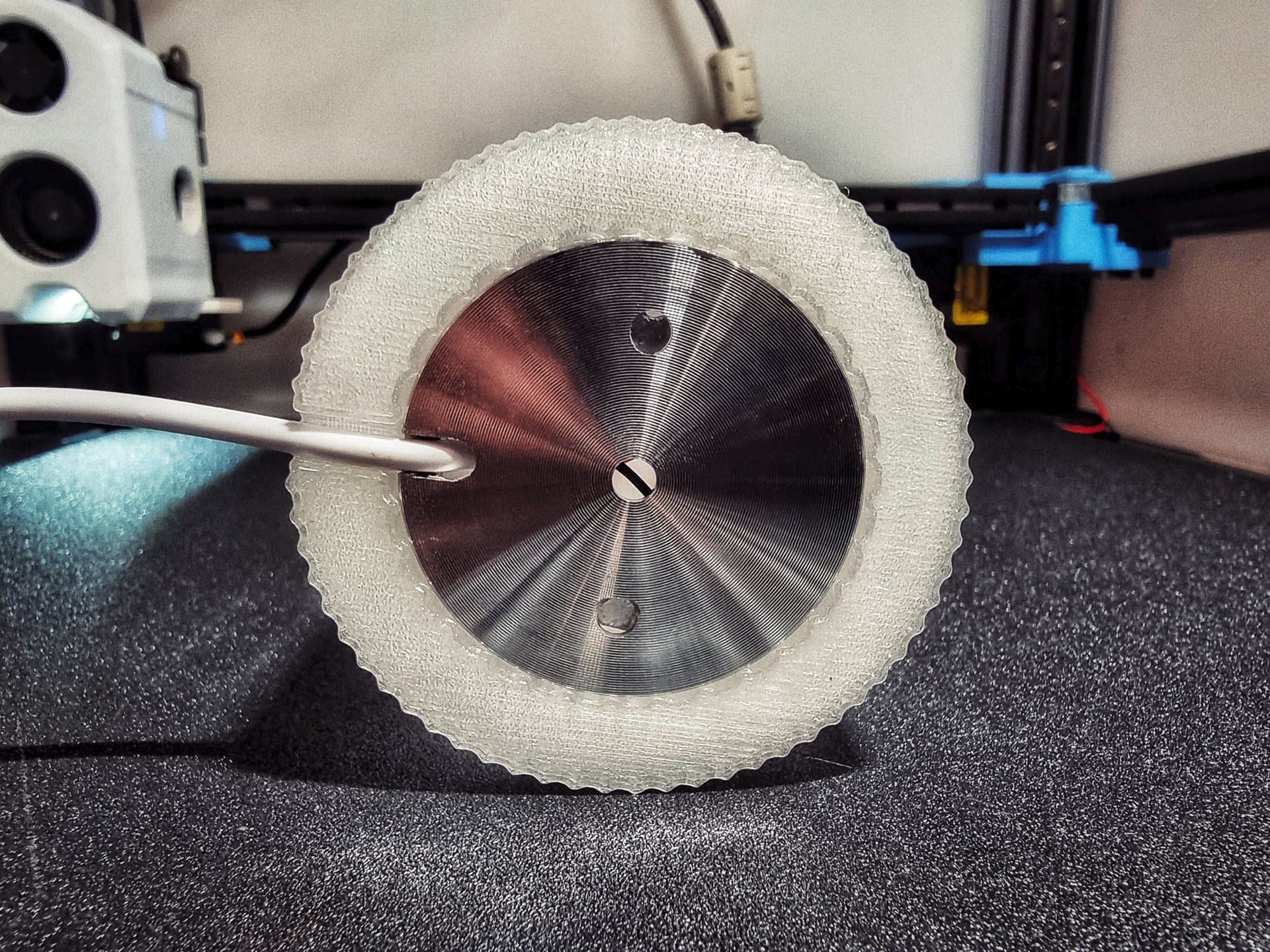

The LED module is 3W, 45 mm in diameter, and 8 mm high.
It’s press-fitted to the bottom of the lamp, and the cable in the channel is secured with a bit of glue.

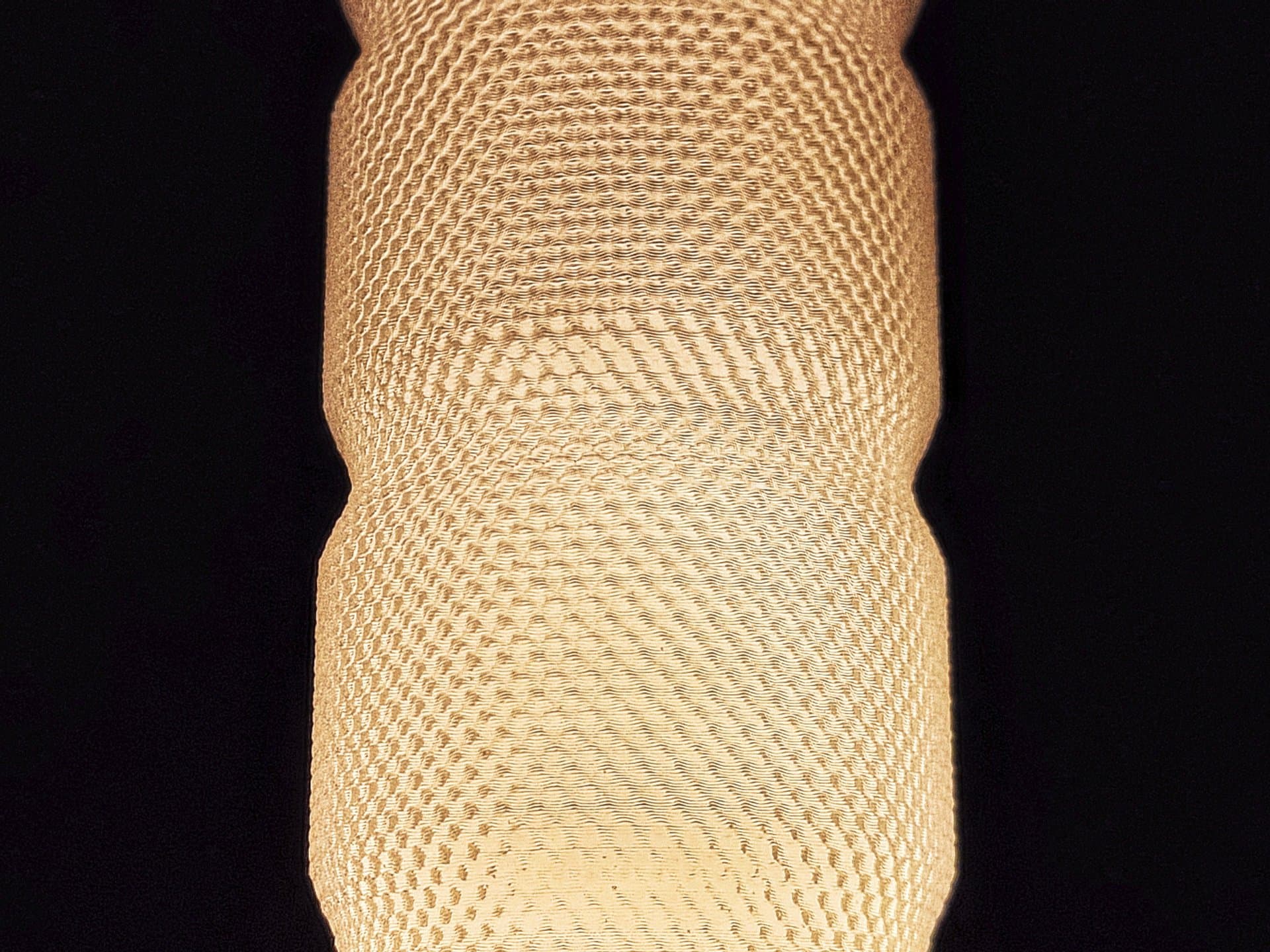

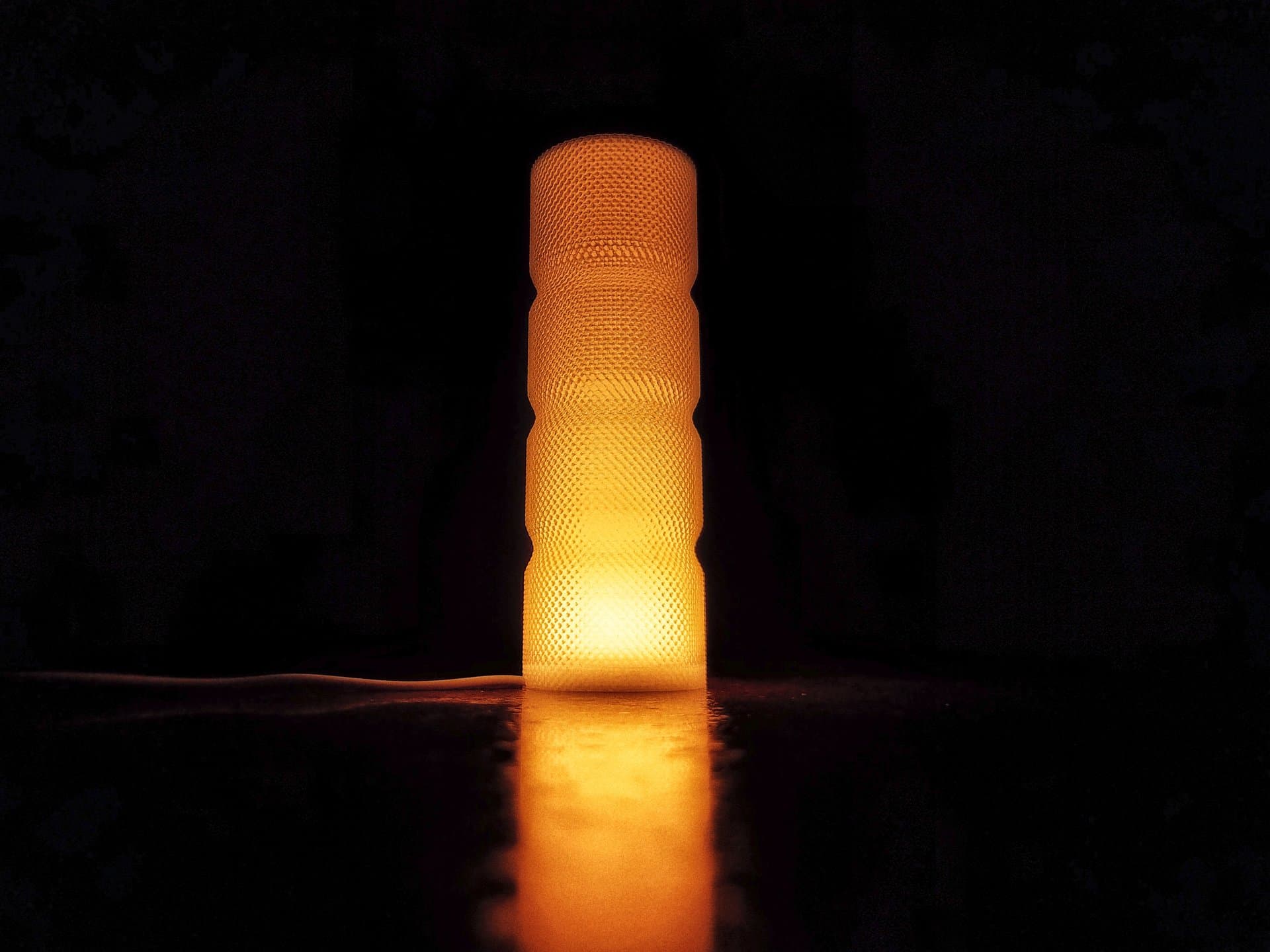

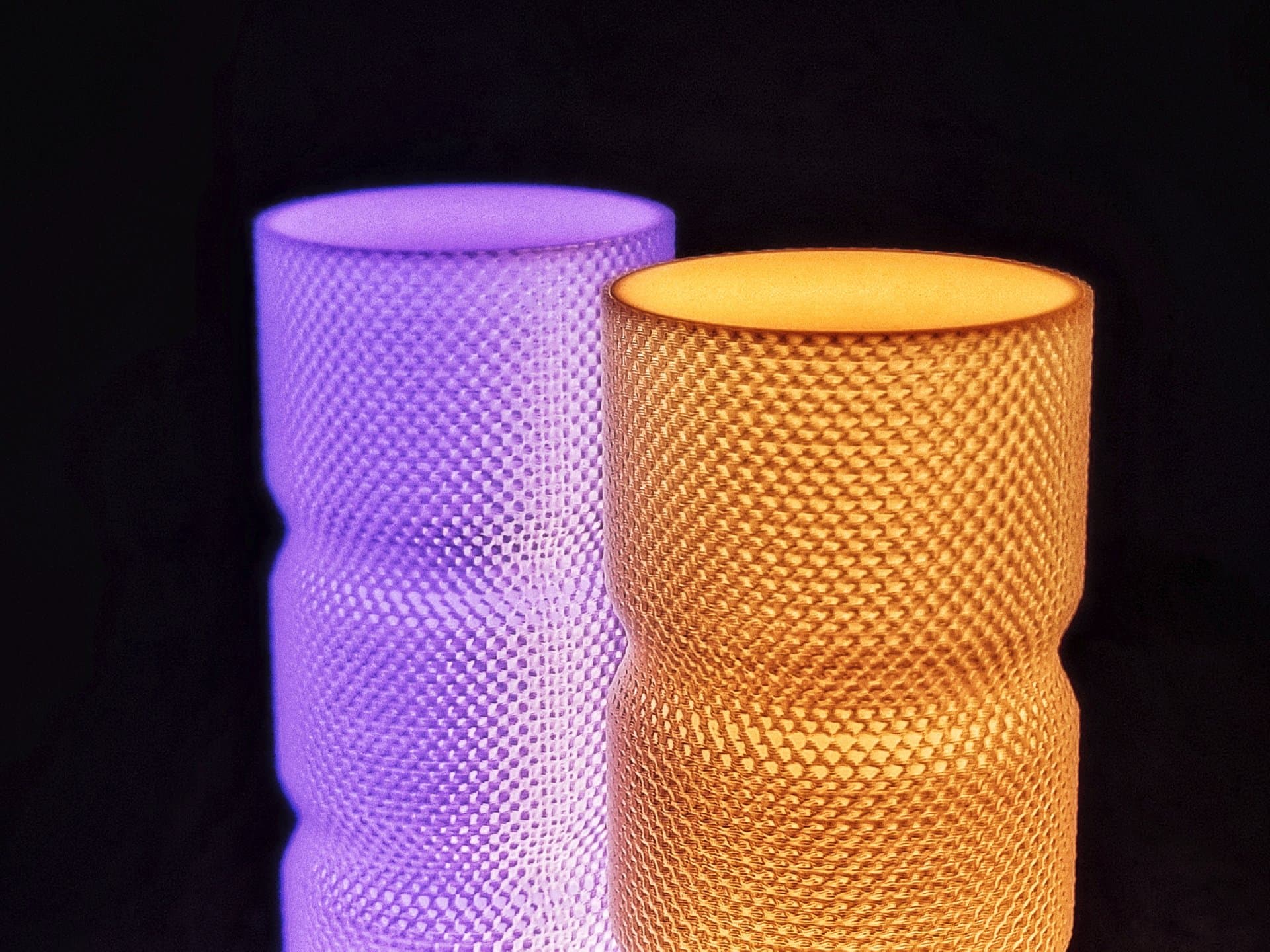

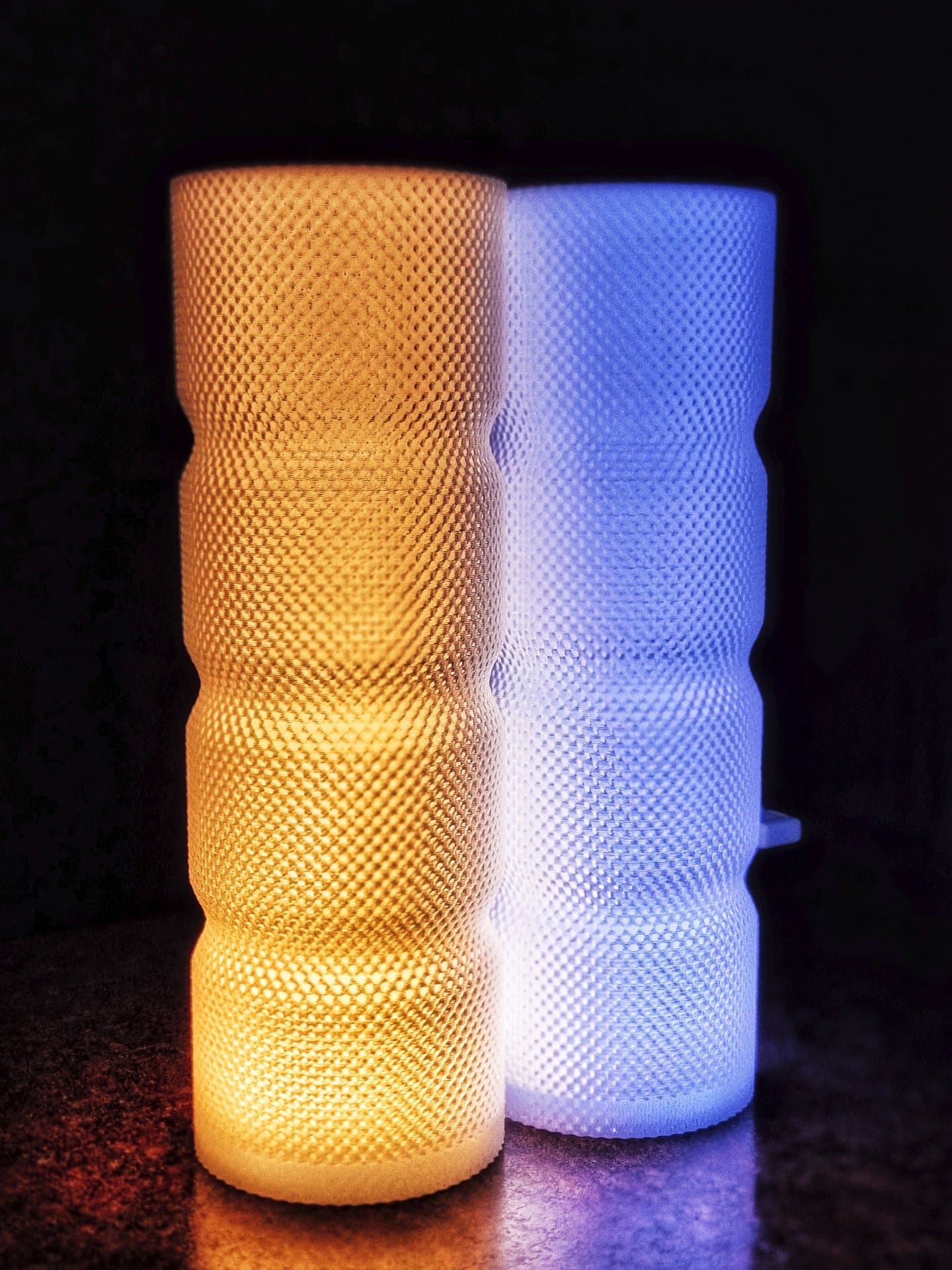

Results
